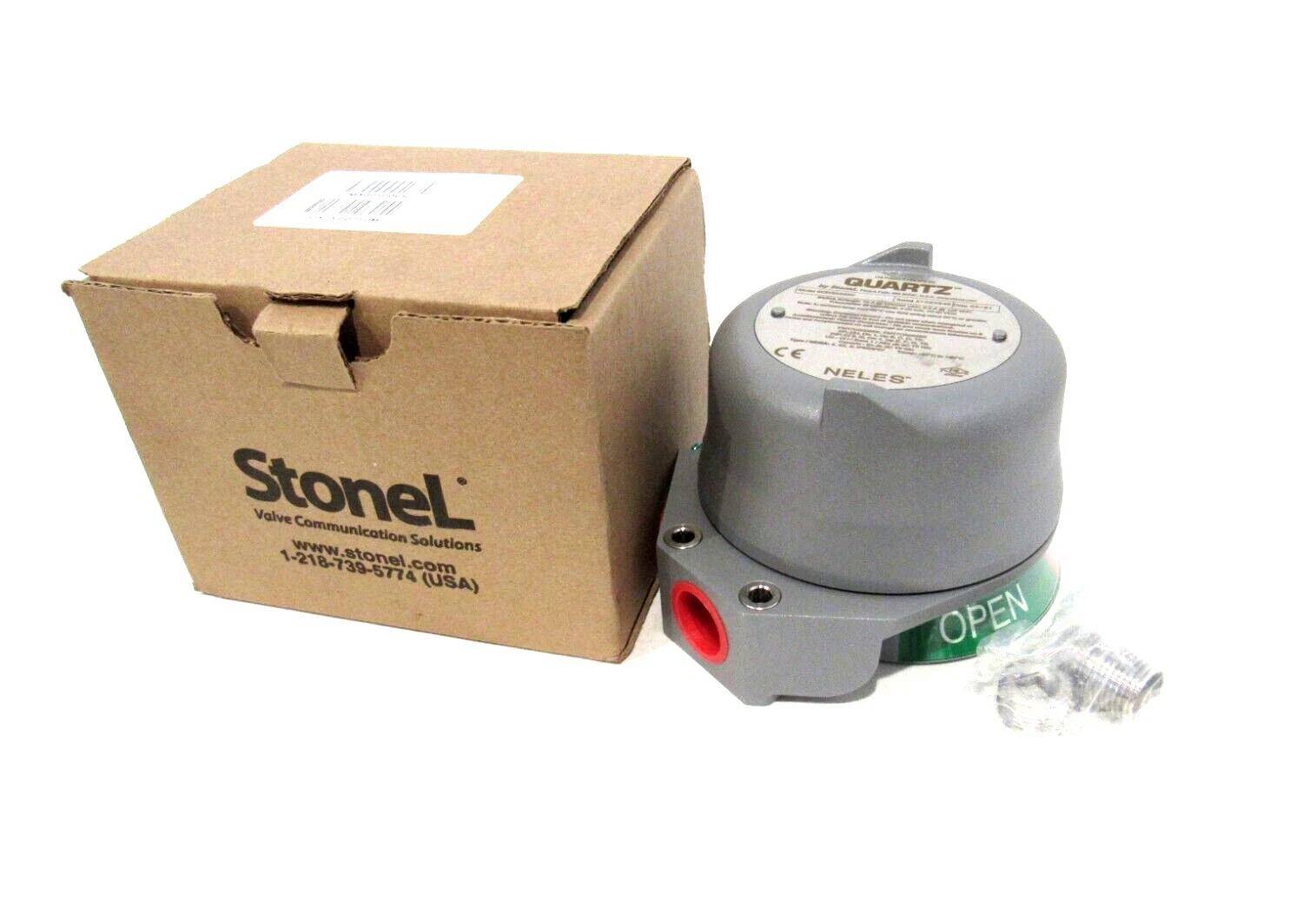

STONEL EN Series Valve Position Switches: Complete Industrial Automation Guide

In modern industrial automation systems, accurate valve position feedback is critical for safety, efficiency, and process reliability. The STONEL EN series valve position switches are widely recognized as industry-proven solutions for monitoring valve open and closed positions in demanding environments.

This comprehensive guide focuses on the most popular STONEL EN series models, including:

• EN44D03SXA

• EN44D02RA

• EN44C02RA

• EN44A02DM

• EN34C02RA

• EN33D05RA

• EN33C02RA

• EN33P02DM

• EN33A02DM

By the end of this article, you will clearly understand how the EN series works, where it is used, why it is trusted worldwide, and how to select the right model for your application.

1. What Is a Valve Position Switch?

A valve position switch, also known as a limit switch box, is a device installed on a valve actuator to provide electrical and visual feedback indicating whether the valve is in the open or closed position.

Core Functions

• Transmit valve status signals to PLC, DCS, or SCADA systems

• Improve process safety and automation accuracy

• Reduce operator error and unplanned downtime

• Enable remote monitoring and diagnostics

The STONEL EN series is designed specifically for quarter-turn valves, such as ball valves and butterfly valves.

2. Overview of the STONEL EN Series

STONEL, part of NELES / Valmet, is a globally respected brand in valve automation. The EN series position switches are engineered for long service life, high switching accuracy, and easy integration with industrial control systems.

Key Characteristics of the EN Series

• NAMUR-standard mounting interface

• Rugged aluminum or reinforced housing

• Clear mechanical open/close indicator

• Precise cam-operated microswitches

• Suitable for harsh industrial environments

These features make the EN series a preferred choice for EPC contractors, plant operators, and automation engineers worldwide.

3. EN44 Series: Heavy-Duty Valve Position Switches

The EN44 series is designed for larger actuators and more demanding applications, offering enhanced mechanical strength and signal reliability.

3.1 EN44D03SXA

The EN44D03SXA is one of the most widely used EN44 models.

Key Advantages

• High mechanical durability

• Stable switching under vibration

• Clear visual position indication

• Ideal for oil & gas and chemical plants

Typical Applications

• Pipeline valve monitoring

• Refinery automation

• Offshore platforms

3.2 EN44D02RA

The EN44D02RA is optimized for applications requiring reliable electrical feedback with simplified wiring.

Use Cases

• Process control valves

• Power plant auxiliary systems

• Industrial automation panels

3.3 EN44C02RA

The EN44C02RA provides a balance between compact design and high reliability.

Highlights

• Easy installation

• Consistent switching accuracy

• Long operational lifespan

3.4 EN44A02DM

The EN44A02DM model is commonly selected for general industrial valve automation where durability and cost-efficiency are both required.

4. EN34 Series: Compact and Versatile

The EN34 series offers a more compact footprint while maintaining STONEL’s high engineering standards.

4.1 EN34C02RA

The EN34C02RA is ideal for medium-sized actuators and limited installation spaces.

Benefits

• Compact housing

• Accurate position detection

• Reduced installation time

5. EN33 Series: Compact, Lightweight, and Efficient

The EN33 series is designed for small to medium actuators, offering excellent performance in a compact package.

5.1 EN33D05RA

The EN33D05RA is commonly used in high-cycle applications.

Key Features

• Fast response time

• Reliable switching accuracy

• Suitable for frequent valve operations

5.2 EN33C02RA

The EN33C02RA is one of the most popular compact STONEL position switches.

Applications

• Water treatment plants

• HVAC automation

• General process industries

5.3 EN33P02DM

The EN33P02DM is optimized for installations where lightweight design and ease of maintenance are essential.

5.4 EN33A02DM

The EN33A02DM provides reliable valve feedback for cost-sensitive projects without compromising performance.

6. How STONEL EN Series Position Switches Work

The working principle of the STONEL EN series is based on a mechanical cam and microswitch system.

Operating Steps

1. Valve actuator rotates

2. Shaft inside the switch box turns

3. Adjustable cams activate microswitches

4. Electrical signals are sent to the control system

5. Visual indicator displays valve position

This proven design ensures high reliability and repeatable performance.

7. Industrial Applications of the EN Series

The STONEL EN series valve position switches are widely used across industries:

Oil & Gas

• Onshore and offshore pipelines

• Refineries and LNG terminals

Chemical & Petrochemical

• Corrosive process environments

• Hazardous area valve automation

Power Generation

• Steam and cooling water systems

• Turbine auxiliary valves

Water & Wastewater

• Flow control valves

• Pump station automation

General Manufacturing

• Process automation lines

• Utility and support systems

8. Advantages of STONEL EN Series Over Alternatives

Compared with generic limit switch boxes, the EN series offers:

• Superior mechanical durability

• Accurate and repeatable switching

• Easy installation and adjustment

• Global brand recognition

• Compatibility with NELES / Valmet systems

9. Installation Best Practices

To ensure optimal performance:

• Verify NAMUR interface compatibility

• Align the shaft correctly with the actuator

• Adjust cams carefully during commissioning

• Use appropriate cable glands and grounding

Proper installation significantly reduces long-term issues.

10. Maintenance and Reliability

The EN series requires minimal maintenance, but regular inspection improves reliability.

Recommended Maintenance

• Check wiring connections

• Inspect seals and gaskets

• Test switching accuracy

• Clean internal components if necessary

11. Model Selection Guide

Selecting the correct model ensures longer service life and stable operation.

12. Why STONEL EN Series Is Trusted Worldwide

STONEL EN series position switches are trusted because they combine:

• Proven engineering

• Industrial-grade materials

• Global technical support

• Long-term availability

These factors make them ideal for critical valve automation projects.

13. Conclusion

The STONEL EN series valve position switches—including EN44, EN34, and EN33 models—are reliable, accurate, and industry-proven solutions for valve position monitoring.

Whether used in oil & gas, chemical processing, power generation, or water treatment, the EN series delivers consistent performance, reduced downtime, and improved operational safety.

For engineers and automation professionals seeking dependable valve position feedback, STONEL EN series switches remain a top choice worldwide.
